Xuper 1851 XHD is a copper-based ller rod for the joining and cladding of aluminum bronzes or dissimilar combinations of Aluminum-bronze to some steels and cast irons. Its special formulation inhibits inter-granular stress corrosion known to cause cracking in copper alloys and steels. As cladding it exhibits all the benets of Al-bronze itself and a high deposition rate saves time and money in any application where it is used.
Very good resistance to cavitation, excellent resistance to marine corrosion, very high tensile strength, high elongation, low friction coefficient, very easily machinable. Aluminium bronze alloys are used to resist corrosion by sea water.EutecTrode1855 XHD allows joining and repairing cast or wrought manganese-nickel-aluminium bronze materials with Maximum Safety Margin.
A unique bronze alloy electrode for joining and overlaying parts in bronze, and also for use on a wide variety of ferrous alloys.
This electrode is specially designed for welding with alternating current. Stable arc even using power sources with low open-circuit voltage. Regular metal transfer with a homogeneous deposit. Very good resistance to corrosion by salt water or steam. Thanks to its low friction coefficient, it is ideal for the overlay of surfaces subject to friction, e.g. plain journal bearings. The deposit is very smooth and is easily machinable.
Compatible with many wrought aluminium alloys. Corrosion resistant for marine and industrial environments. Deposits can be anodised or electroplated.
EutecRod 157 rod soldering alloy is particularly suitable for stainless steel assemblies, brass and bronze components, nickel alloys, and most carbon steels when used with Eutectic Flux 157. Deposits are corrosion resistant and do not tarnish in service.
EutecRod 190 provides exceptional thin-owing properties when oxy-fuel brazing sheet, tubing and most wrought forms of aluminum. Excellent color match with smooth, uniform llets. Properties are highly compatible with aluminum grades 3xxx & 4xxx.
A bare brazing rod requiring preparatory uxing with XuperBraze 100 or Xuper Braze 100H. Available in 18” lengths in 16/1” diameter. Packaged in 0.5 lb. and 1 lb. packs.
EutrcRod 1801 G is an excellent general purpose brazing alloy that is often associated as the ideal replacement for many of the cadmium bearing alloys. 1801 G is suitable for joining ferrous, nonferrous and dissimilar base metals with close joint clearances. Generally, the joint strength using 1801 G will excede the strengths of the base metals being joined. Type of joint, design of joint, joint clearances, and brazing procedures will effect the nished joint strength. 1801 G is available in bare brazing rod, coil or strip requiring preparatory uxing with XuperBraze® 100.
Tube To Tube Sheet Joining Torch Brazing Rod For Self-Fluxing Copper-To- Copper Joints. Copper-phosphorus-silver alloy, developed for the capillary joining of copper metal parts. Cleaning: Once theflux has been used, washing with hot water or soaking in cold water will remove the flux residue
Description: Flux-free capillary joining of copper Type: Self-Fluxing Brazing Alloys for Copper. Category: Low Temperature Brazing and Soldering Alloys
Braze welding alloy with a controlled composition,made from high purity elements, designed to performexcellent quality joints. CASTOLIN146 XFCis an «ELASTEC» ux-coated rod with a remarkable exibility, allowing excellent visibility of the molten pool during the joining operation.
Xuper 16 XFC is a nickel-containing exible ux coated bronze brazing rod. 16 XFC is pre-ux coated with the ocrrect amount of ux so there is no preparatory uxing required. Xuper 16 XFC is an excellent replacement for high cost silver brazing alloys when higher brazing temperatures are acceptable. 16 XFC is a blue colored exible ux coated brazing rod. Available in 18” lengths in 8/1” diameter 11 lb. packs and 32/3” diameter 11 lb. packs.
Xuper 185 XFC is a premium ux-coated brazing rod for appliations involving wear due to frictional compressive forces. The controlled nickel addition improves application toughness and depresses fuming tendencies for welder friendly use.

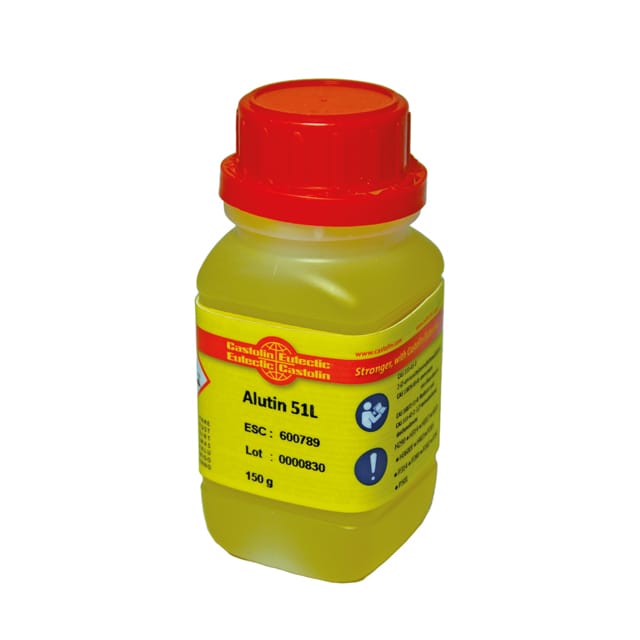

AluTin 51 is supplied as a viscous gel ux. It is designed for the soldering of aluminium and the joining of aluminium with copper, brass or copper-aluminium.
The AluTin 51 Flux residues are water soluble. They are generally removed by washing in hot water. Tensile Strength: 105 N/mm2 (15,000 psi) Shear Strength: 68 N/mm2 (10,000 psi) Electrical Conductivity - IACS: 16.5% Thermal Expansion Coef.: 12 x 10-6 in / F (20 - 212°F) Solidus Temperature1: 430°F (220°C) Liquidus Temperature2: 430°F (220°C) Maximum Brazing Temp.: 450°F (230°C)
Eutectic StainTin 157PA is a paste soldering alloy particularly suited to stainless steels, thoroughly compatible with most copper, aluminum and carbon steel alloys. The corrosion resistance of deposits in service ensure they remain bright and tarnish-free for a reliable, clean joint.
7888 C is a high-performance anti-wear product in the form of a exible cord, comprising a nickel core wire, covered with an elastic binder containing a mixture of carbides and nickel alloy powder. The latter has a uniquely effective self-uxing action, which gives 7888 C outstanding wetting properties. As a result, a smooth, even protective coat can be deposited quickly and easily. 7888 C deposits an extremely durable protective coating comprising a dense mass of ultrahard tungsten carbides embedded in a tough nickel-chromium alloy matrix. This structure offers extremely effective protection against erosive and abrasive attack by a wide variety of materials. The matrix composition helps to absorb moderate impact and improves resistance to corrosion, while the angular prole of the nely crystallised carbides makes ft very difficult to dislocate them from the matrix..
TeroCote 7888T is a high performance anti-wear alloy. Produced in a single continuous coil from, 7888 T is a exible continuous cord, comprised of a nickel core wire covered with an elastic binder which contains a high proportion of angular tungsten carbides and alloy powder. The coil is wound on a cellulosic material spool which can be mounted to facilitate use with automated wire feeder systems. 7888T deposits offer an extremely dense mass of ultrahard carbides (80% by weight) in a tough, durable coating with low sensitivity to cracking due to a nickel enhanced matrix.
TeroCote® 7888 M is a composite wire consisting in a nickel base and a exible coating containing a mixture of tungsten carbides and a nickel-chromium alloy.
The deposit ensures a very high resistance to abrasion wear even in extreme conditions. The formula optimises the deposit appearance as well as the application of the product.
